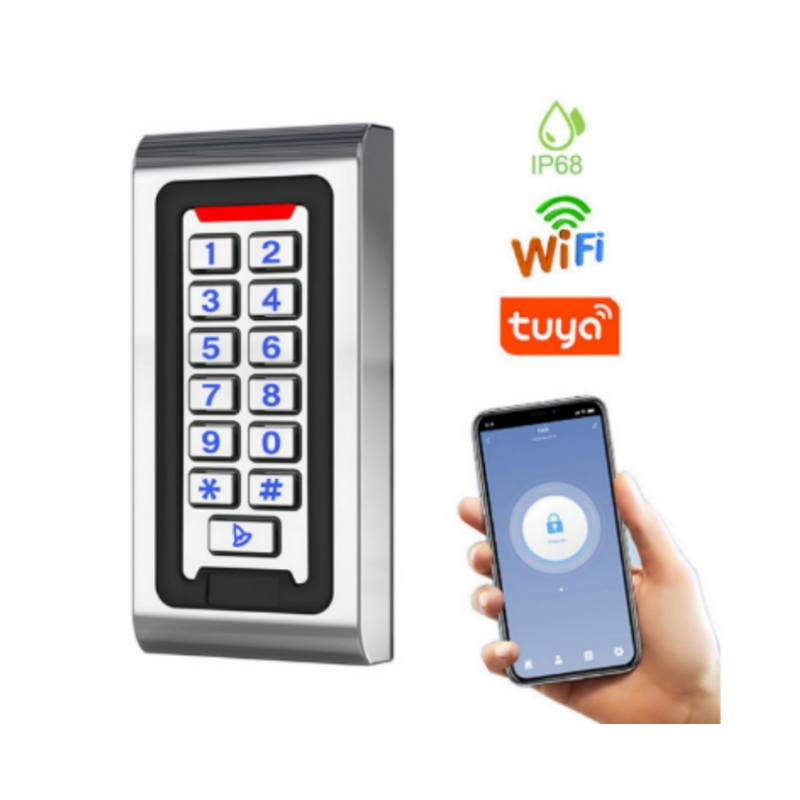

Standalone Unit

WIFI Standalone Unit

TUYA APP
WIFI
SA-403
Product description: We're WIFI Stand Alone Unit Manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
INQUIRY

Technical Parameter

Model	SA-CWIFI
Capacity	2000
working voltage	12V DC
Lock Open Current	2A
Identify speed	<=1s
Open mode	Card/ password/card+password
Card Type	RFID card (MF card is optional)
Work distance	1-15cm
Work temperatrue	-25 to 55
Waterproof Degree	IP68
Wiegand	input/output

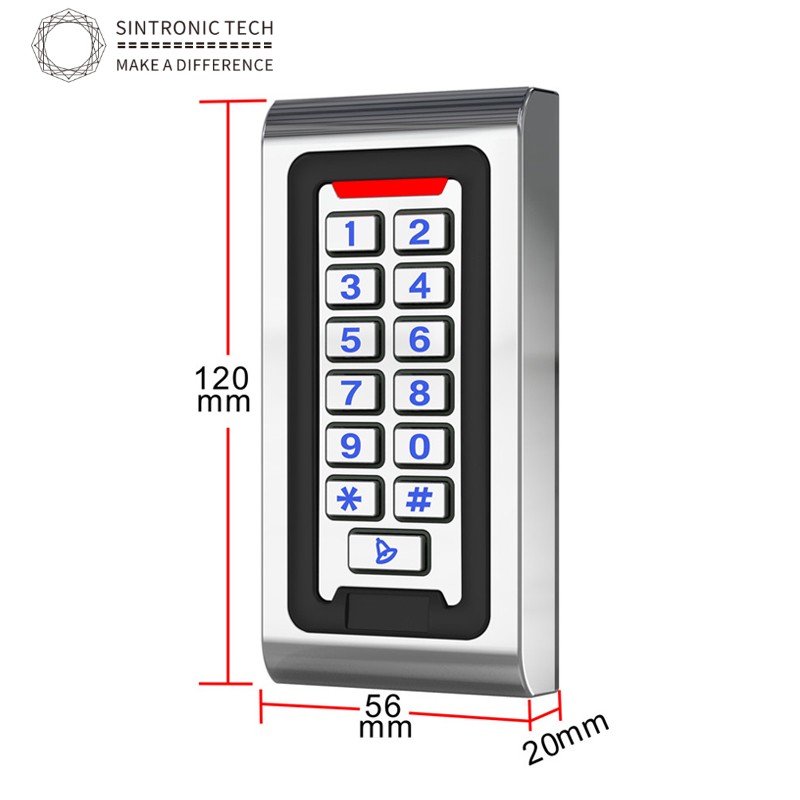

Dimension	120x56x18(mm)

Feature
1. The excellent design, surface waterproof keyboard, silver plating, fashion style.
2. The multi-function equipment.
3. The high and low temperature environment to use, surface waterproof.
4. The storage capacity of 2000 user card, 2000 user password.
5. Open three ways: card, password. Card and password.
6. Ultra-low power consumption: Standby current is less than 50 ma.
7. Keyboard: Be able to operate the keyboard.
8. Large capacity of users: support 2000 users.
9. Independent password (4 digitals).
10. Change password: The user can modify the code itself.
11. Identify speed: Swipe to open the door of time is less than 0.1 S.
12. Weigand26/34 output/ input (can connect a card reader and as a reader)
13. With bell,alarm button and time delay function (1-255s adjustable).

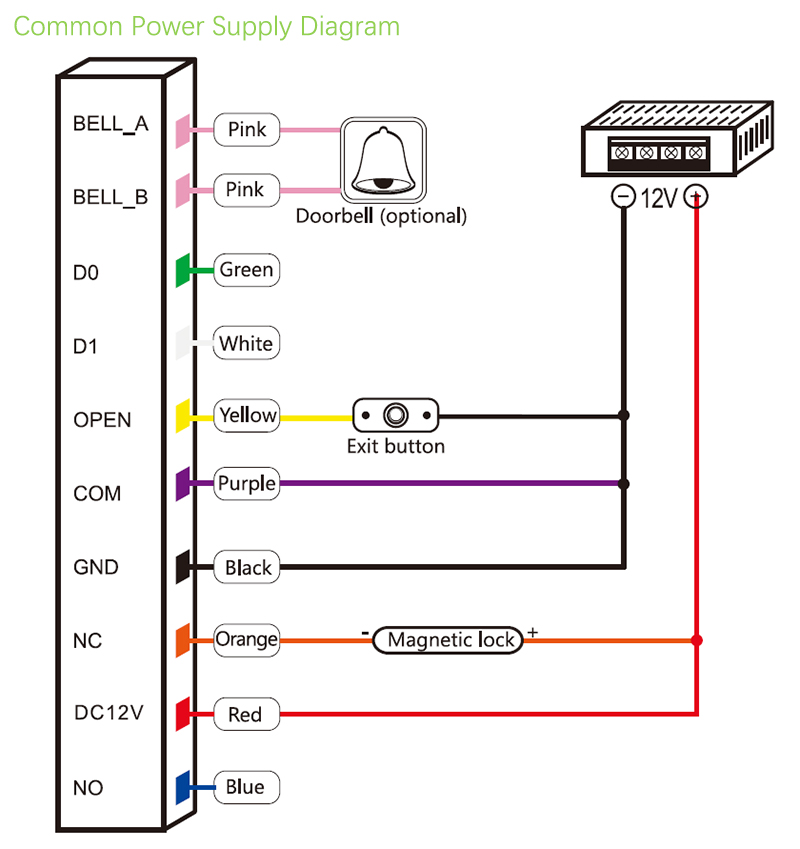

Wiring Diagram
